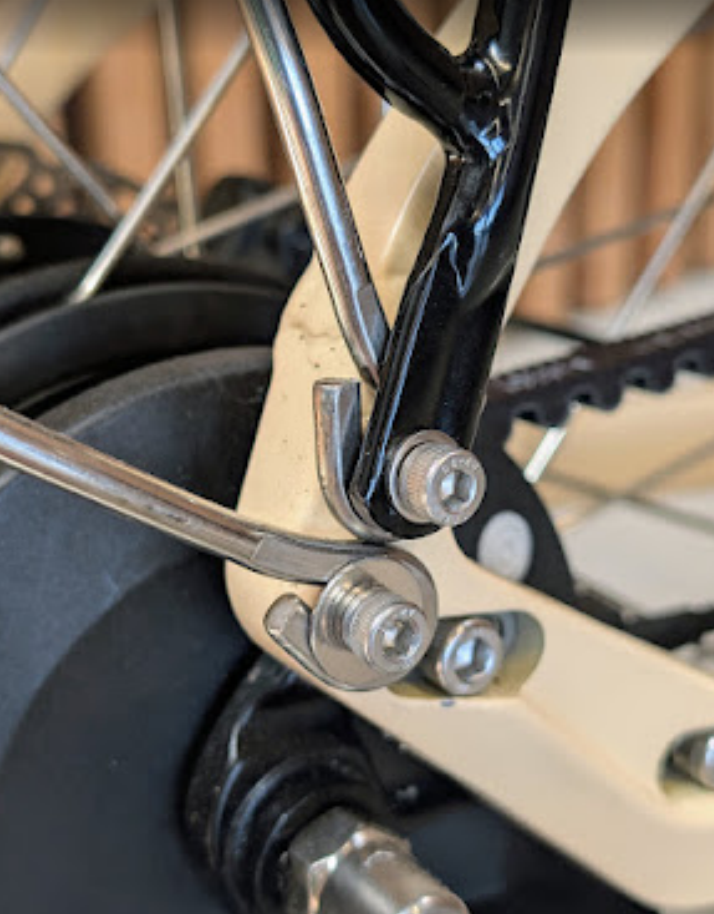

Attach both left and right lower stays to the frame. Keep these loose at this point.

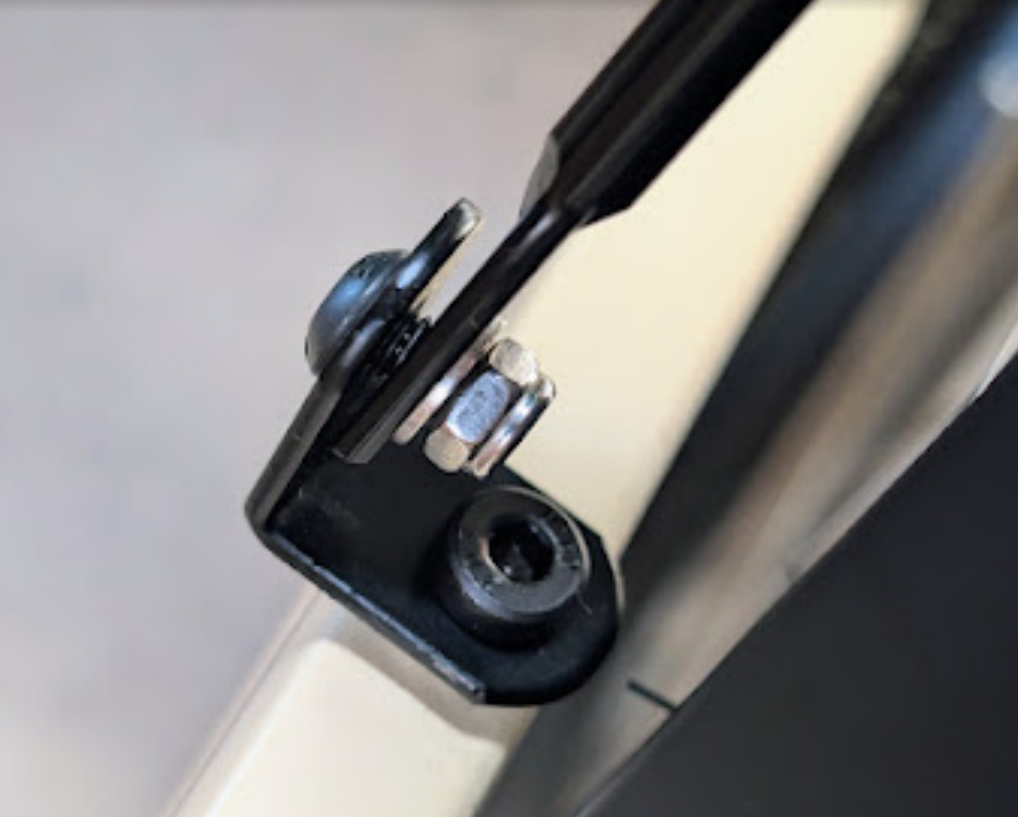

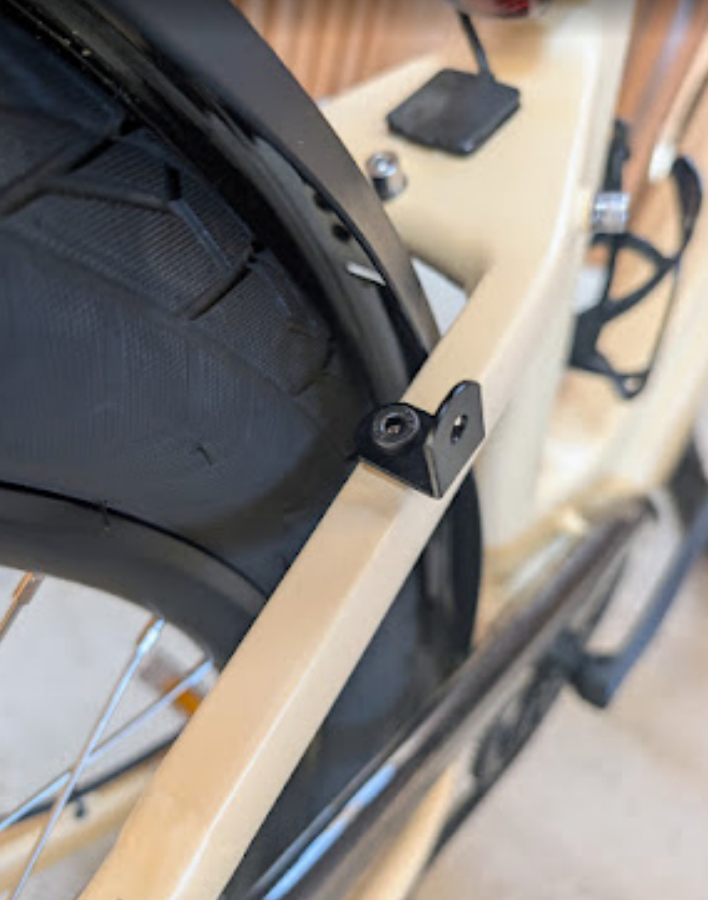

Tighten the hardware holding the upper rack stay to the L bracket.

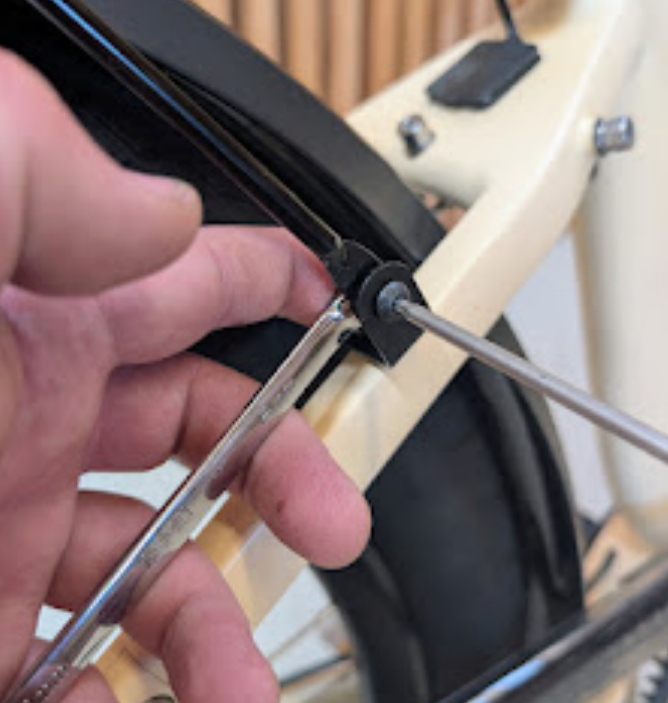

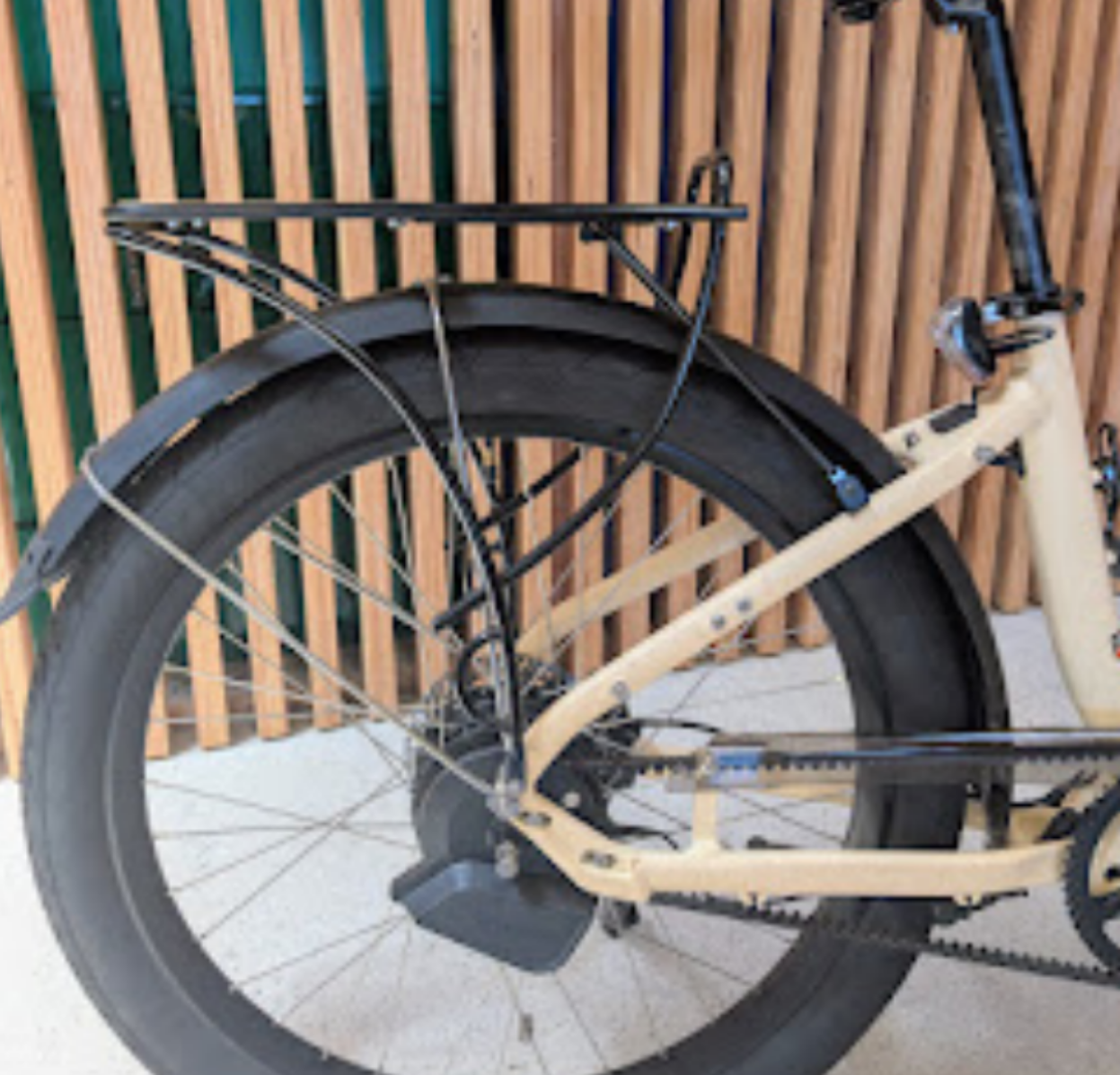

Now tighten the lower rack strut hardware on both sides.

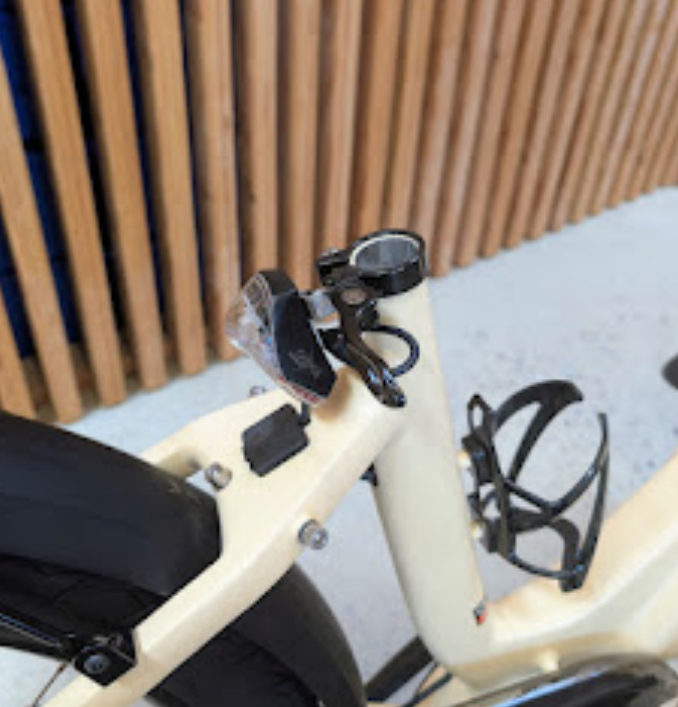

Remove the light mounted to the seat collar by opening up the quick release lever and un-threading the bolt from the other side.

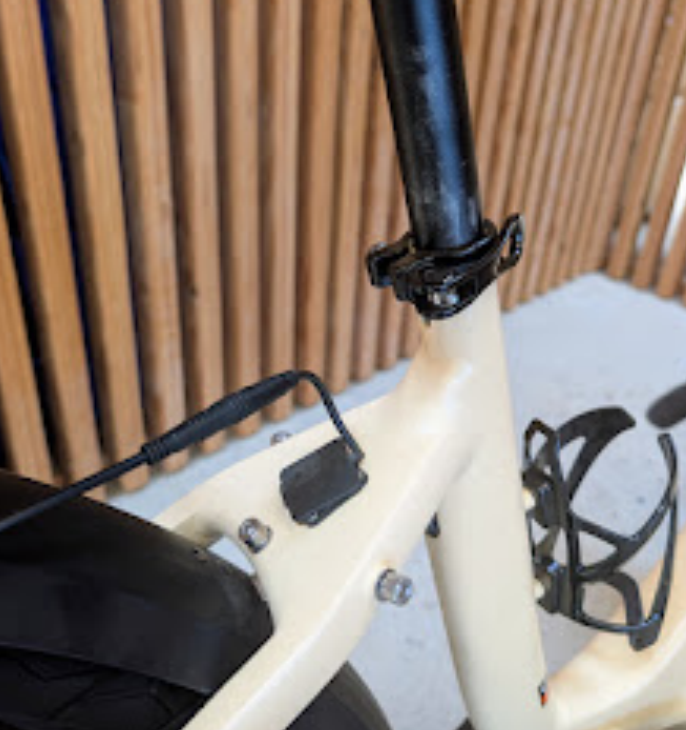

Disconnect the light at the Julet plug and set aside. Connect the light extension and run the wire under the rack towards the rear.

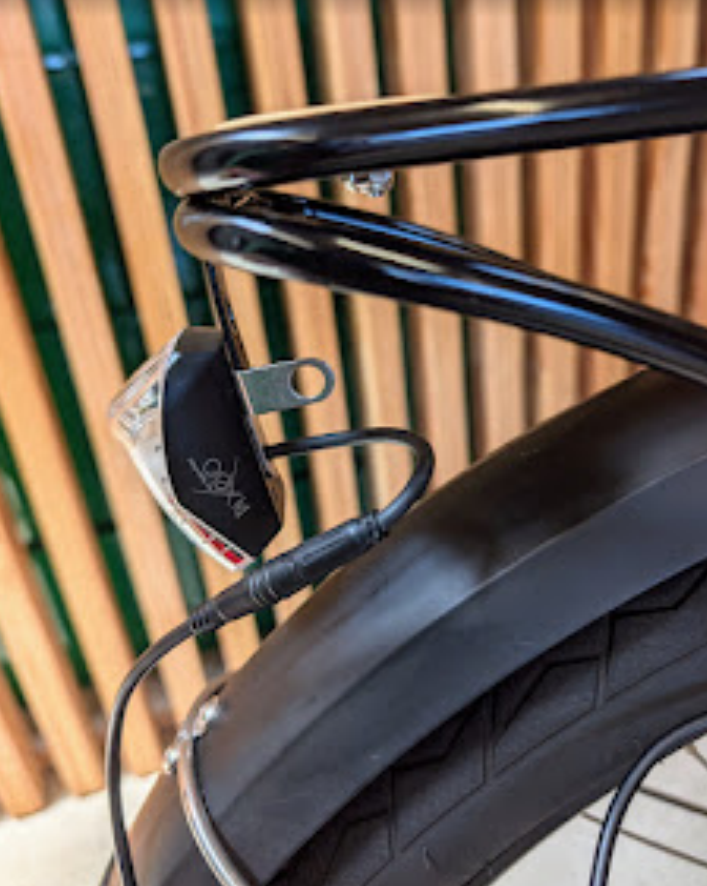

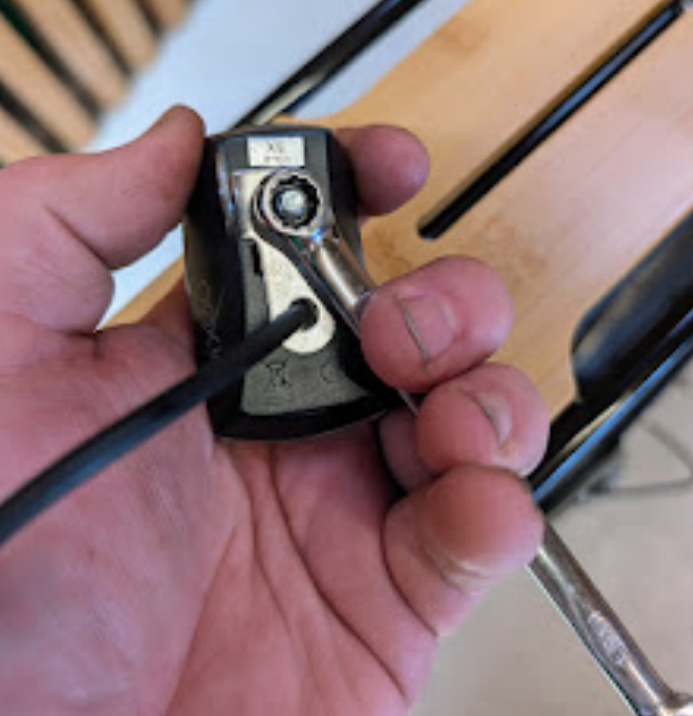

Remove the nut on the back side of the tail light.
Mount the light to the bracket on the rear of the rack and tighten the nut. NOTE: the silver bracket on the light does not come off because the wire passes through it.

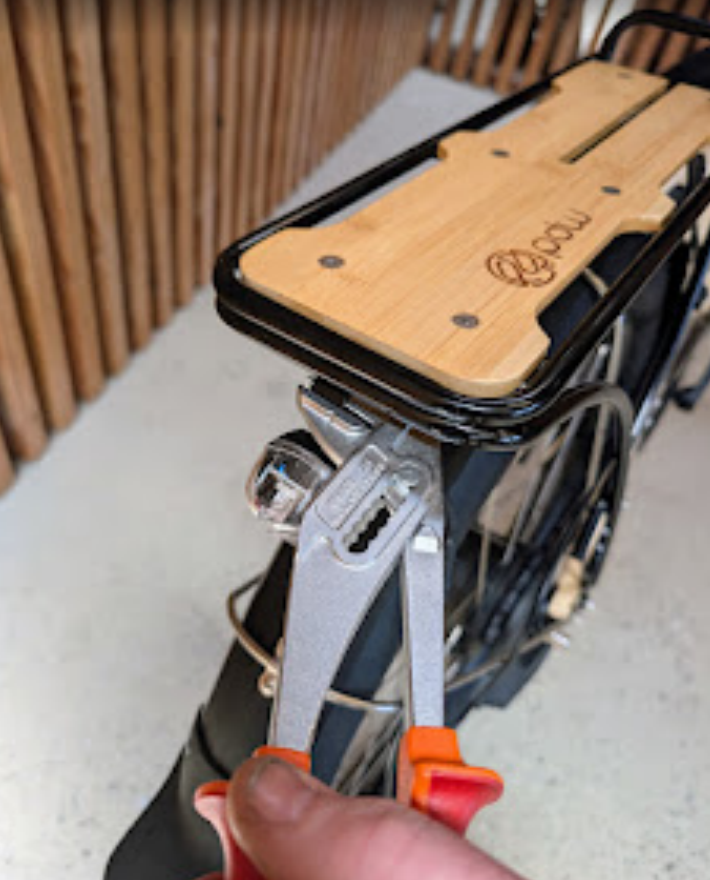

Use some pliers to bend the light bracket until the light is level.

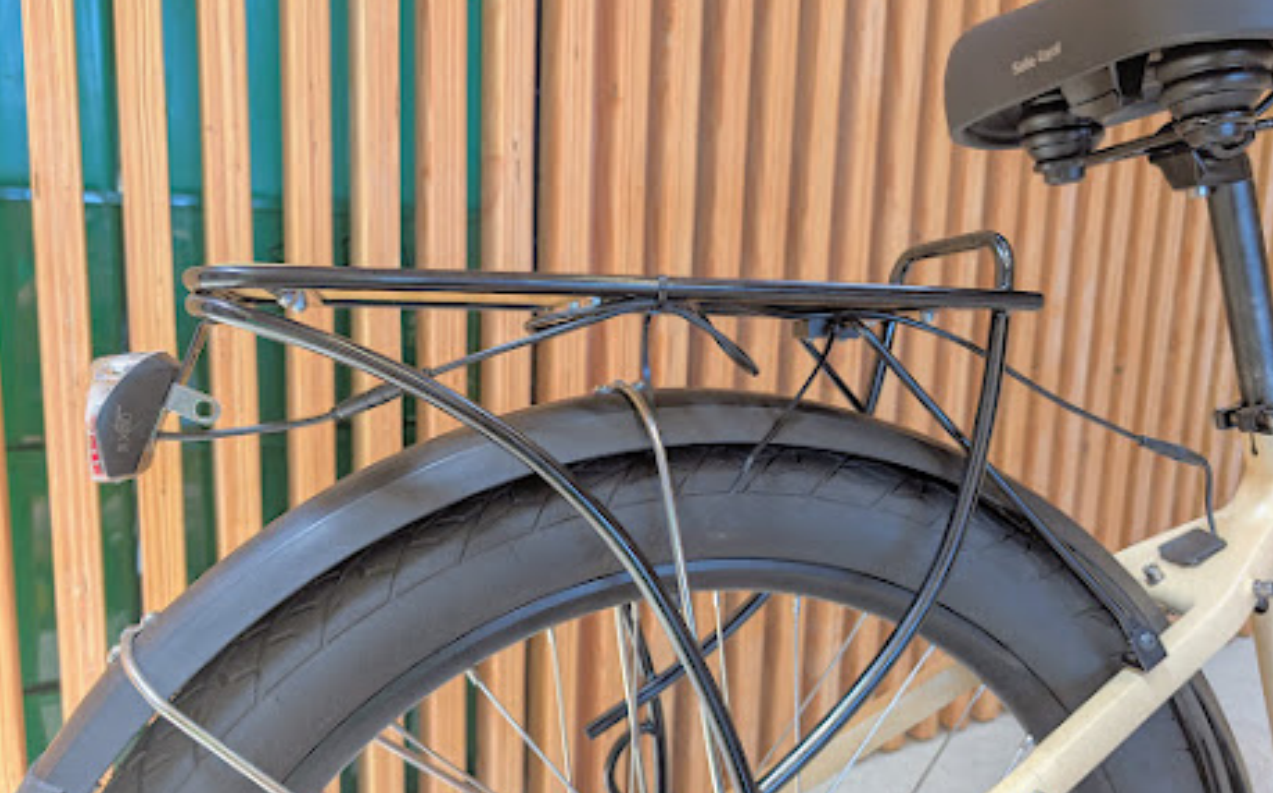

Use some zip ties to fasten the light wire under the rack. At the very least make sure there is no slack that hits the tire as shown below but you can also use many zip ties to have the wire run down the the L brackets, up the upper stay and then along the underside of the rack.
